Stationary Concrete Batching Plants

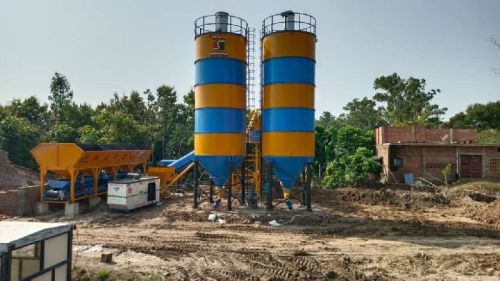

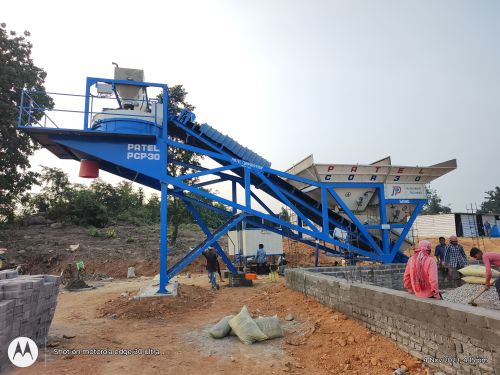

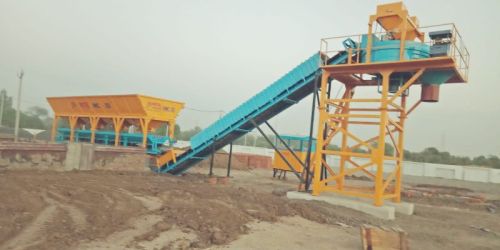

Leading Manufacturers and Wholesaler of Stationary Concrete Batching Plant (Pcp 30), Stationary Concrete Batching Plant (Rmc 30), Stationary Concrete Batching Plant (RMC 40), Stationary Concrete Batching Plant (Rmc 45) and Stationary Concrete Batching Plant (Rmc 60) from Mahesana.
| Business Type | Manufacturer, Supplier |
| Application | Concrete Mixing And Batching For Construction Projects |
| Availability | Approximately 15,000 Kg |
| Number Of Flower | Stationary Concrete Batching Plant |
| Capacity | 30 Cubic Meters Per Hour |
| Power Source | Electric |
| Dimensions | Typically 10m X 3m X 3m |
| Model | 30 New |
| Business Type | Manufacturer, Supplier |
| Brand Name | Patel Corporation |
| Country of Origin | India |
| Air Compressor | 2 HP |
| Plant Capacity | 30 Cubic Meter per Hour |
| Cement Storage | 50 Bag Capacity |
| Aggregate Weighing System | Plain Conveyor Belt |
| Control Panel | Automatic PLC Based Control Panel |
| Business Type | Manufacturer, Supplier |
| Brand Name | Patel Corporation |
| Air Compressor | 2 HP |
| Plant Capacity | 40 Cubic Meter Per Hour |
| Material Transfer Conveyor | Chevron Type Conveyor Belt |
| Cement Weighing System | 450 Kg Cement Hopper |
| Water Weighing System | 250 Kg Water Hopper |
| Total Connected Power | 80 HP |
| Mixer Type And Capacity | Twin Shaft Mixer 750/500 |
| Mixer Motor | 30 HP |
| Aggregate Storage | 7.5 X 4,30 CM In line Bin Type |
| Cement Storage | 50 Bag Capacity |
| Aggregate Weighing System | Plain Conveyor Belt |
| Control Panel | Automatic PLC Based Control Panel |
| Cement Feeding System | 219 diameter X 10 mtr Screw Conveyor |
Details :
- Flexibility in the configuration
- High production performance and high productivity
- Easy installation due to its modular structure
| Business Type | Manufacturer, Supplier |
| Brand Name | Patel Corporation |
| Driven Type | Electric |
| Automatic Grade | Semi Automatic |
| Country of Origin | India |
| Type | Stationary Concrete Batching Plant |
| Aggregate Waiting Hopper On Mixer | Yes |
| Air Compressor | 5 HP |
| Business Type | Manufacturer, Supplier |
| Brand Name | Patel Corporation |
| Air Compressor | 2 HP |
| Plant Capacity | 60 Cubic Meter Per Hour |
| Material Transfer Conveyor | Chevron type Conveyor Belt |
| Cement Weighing System | 550 Kg Cement Hopper |
| Water Weighing System | 250 Kg Water Hopper |
| Total Connected Power | 100 HP |
| Mixer Type And Capacity | Twin Shaft Mixer 1500/1000 |
| Mixer Motor | 50 HP |
| Aggregate Storage | 15 X 4,60 CM In line Bin Type |
| Cement Storage | 50 Bag Capacity |
| Aggregate Weighing System | Plain Conveyor Belt |
| Control Panel | Automatic PLC Based Control Panel |
| Cement Feeding System | 219 diameter X 10 mtr Screw Conveyor |
Details :
- Flexibility in the configuration
- High production performance and high productivity
- Easy installation due to its modular structure
